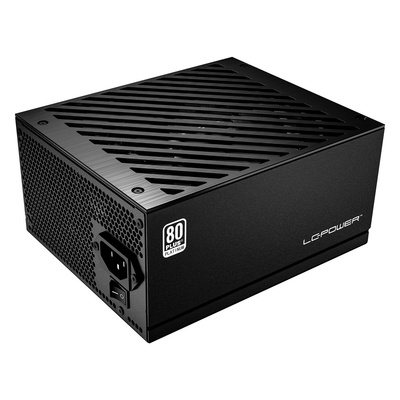

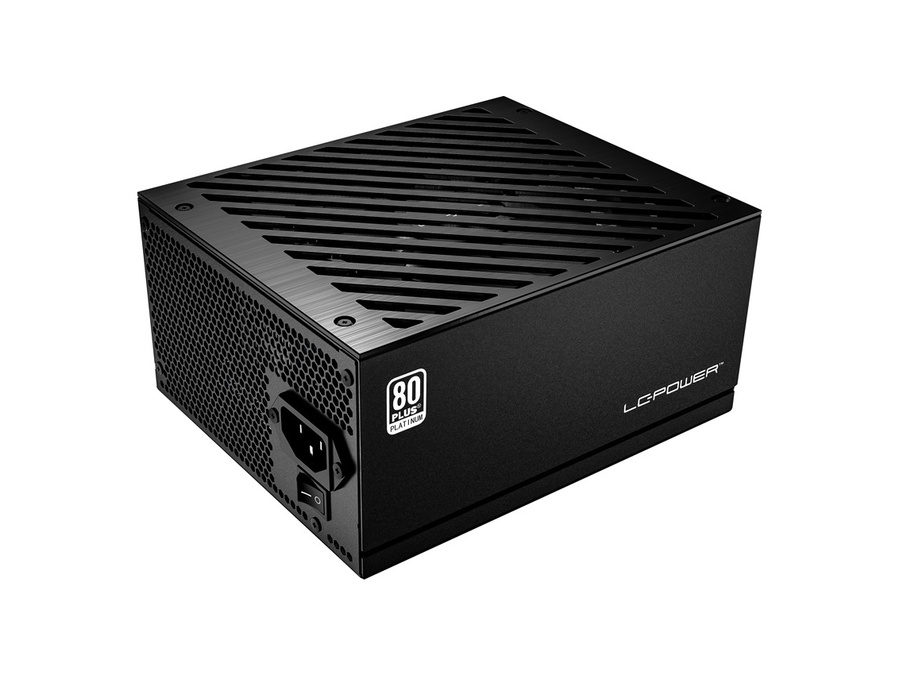

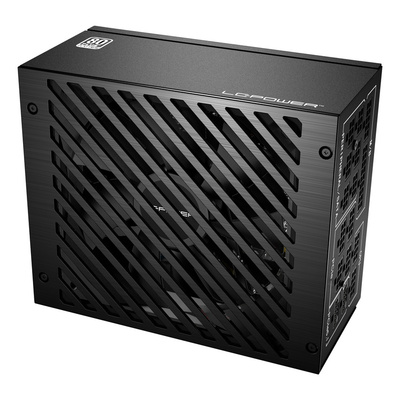

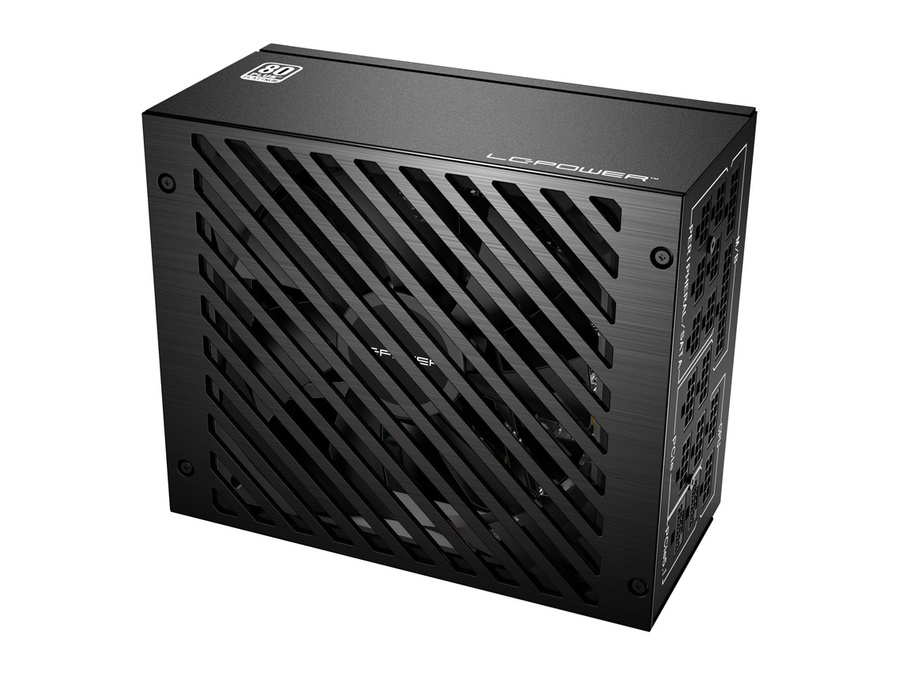

LC-POWER Platinum-Serie LC1200P V3.1 1200W ATX 3.1
Allgemeines
Typ
PC-/Server Netzteil
Formfaktor
ATX
Kennzeichnung
80 PLUS Platinum
Technische Daten
+12V
100A (1 Schiene)
+3.3V
20A
+5V
20A
+5Vsb
3A
-12V
0.4A
12V-2x6
2x 16-Pin PCIe 5.1 12V-2x6 (12+4-Pin, nativ, via 12V-2x6 PSU-seitig, je 600W), 12V-2x6 Gesamtleistung: 600W
Abmessungen - Breite
150mm
Abmessungen - Höhe
86mm
Abmessungen - Tiefe
180mm

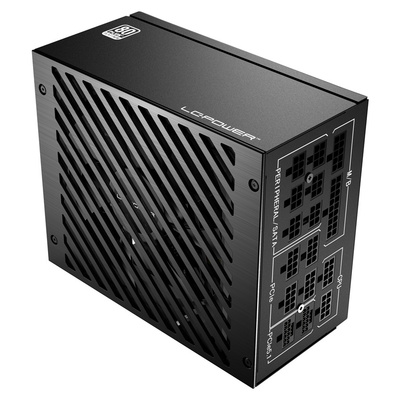

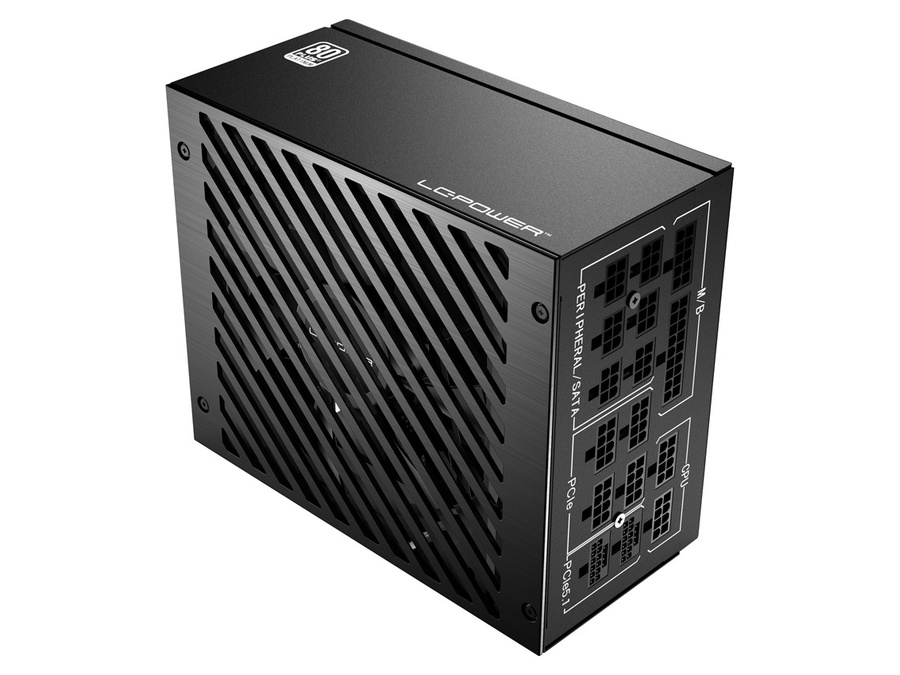

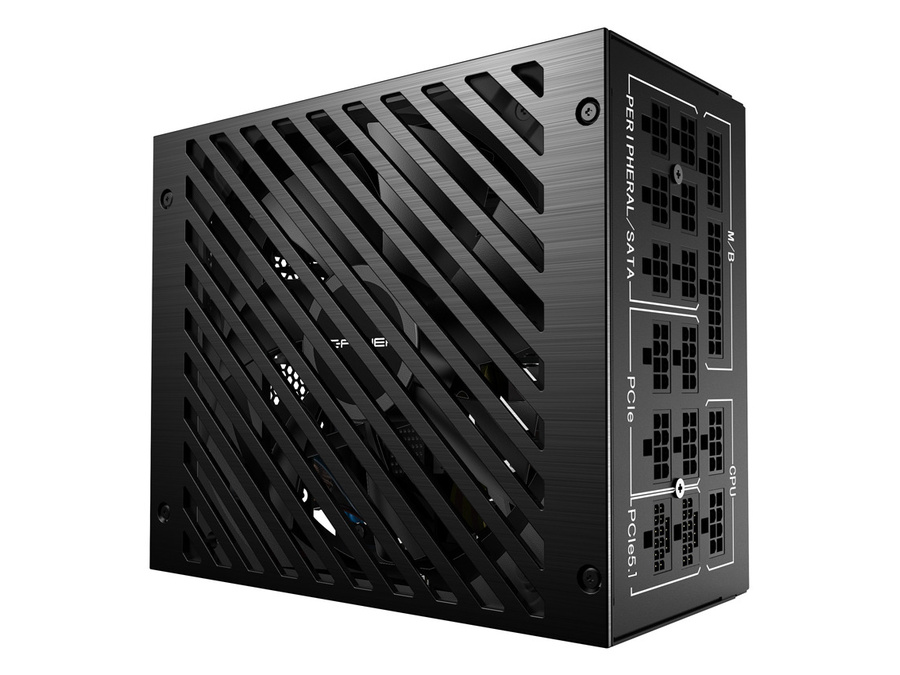

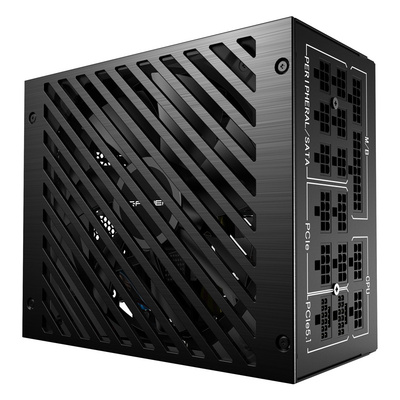

Anschlüsse
1x 20/24-Pin
2x 4/8-Pin ATX12V
1x Floppy
8x 6/8-Pin PCIe
6x IDE
1x 4-Pin ATX12V
20x SATA
2x 4/8-Pin ATX12V
1x Floppy
8x 6/8-Pin PCIe
6x IDE
1x 4-Pin ATX12V
20x SATA
Anschlüsse - 20/24-Pin
1
Anschlüsse - 4-Pin ATX12V
1
Anschlüsse - 4/8-Pin ATX12V
2
Anschlüsse - 6/8-Pin PCIe
8
Anschlüsse - Floppy
1
Anschlüsse - IDE
6
Anschlüsse - SATA
20
Besonderheiten
ErP Lot 6, unterstützt Haswell C6/C7 Low-Power States
Durchschnittliche Effizienz
92% (laut Hersteller)
Farbe
schwarz
Formfaktor
ATX PS/2
Gewicht
3.67kg (mit Kabel), 3.43kg (ohne Kabel)
Hinweis
Bitte schließen Sie nur eine Grafikkarte bis 450W oder 600W an das Netzteil an. Alternativ können zwei Grafikkarten bis je 300W angeschlossen werden.
Kabelmanagement
vollmodular

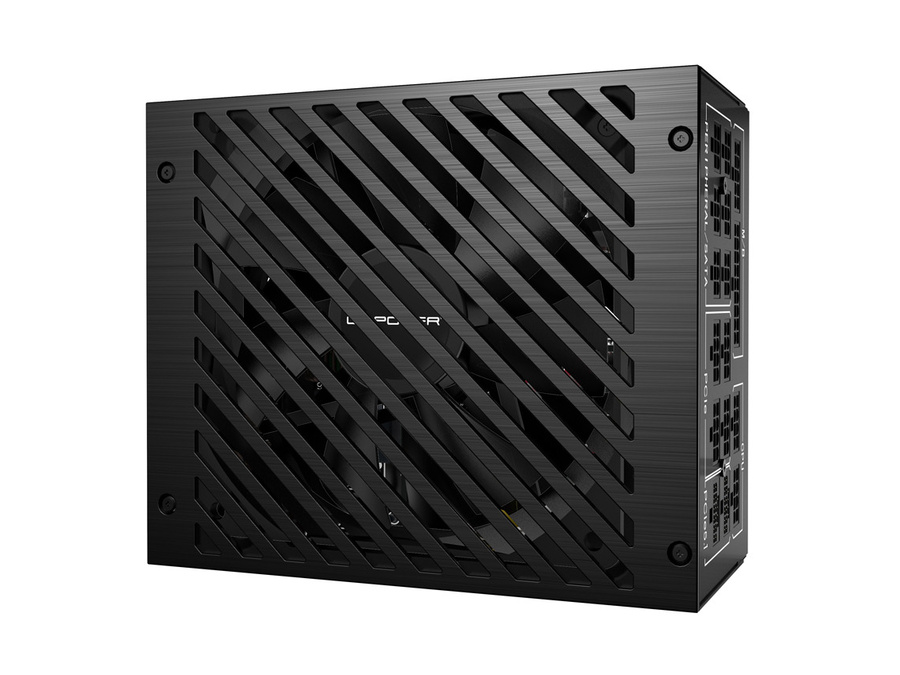

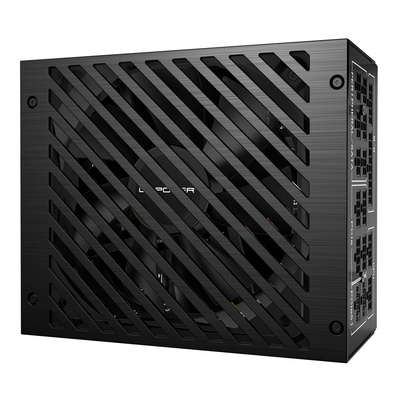

Lüfter
135mm
Max. Combined Power
100W (3.3V+5V), 1200W (+12V), 4.8W (-12V), 15W (5Vsb)
PFC
aktiv
Spezifikation
ATX 3.1
Watt
1200
Support
Herstellerinformationen zu LC-Power
Firmenname: Silent Power Electronics GmbH
Strasse: Formerweg 8
PLZ/Ort: 47877 Willich
Homepage: www.lc-power.com
Kontakt: 0049180-5-898723 Mo - Fr: 09:00 - 16:30
Support: [email protected]
Anfragen zu RMA, Ersatzteile, Garantie : [email protected] richten
Garantie: 24 Monate Herstellergarantie
